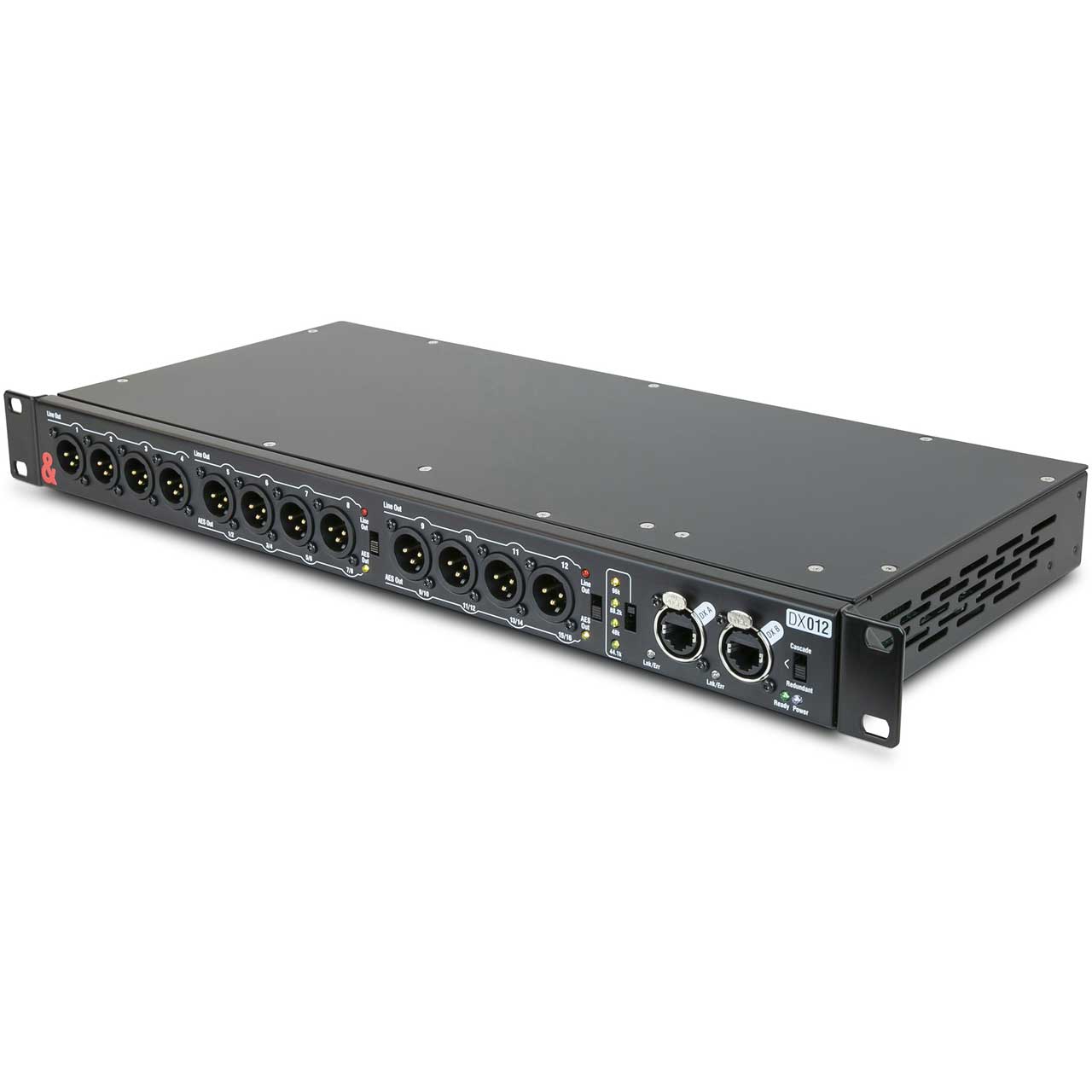

Allen & Heath AH-DX012 12 XLR Output Analog/AES Portable DX Expander
Original price was: $1,999.00.$1,599.00Current price is: $1,599.00.
Allen & Heath AH-DX012 12 XLR Output Analog/AES Portable DX Expander. Gear by The Penn Group.
In stock
Description
12 XLR Output Analogue/AES Portable DX Expander
Need to get more out of your system? DX012 provides remote output expansion for SQ, Avantis and dLive mixers, and for the AHM-64 audio matrix processor.
Perfect for feeding IEM systems and amplifier racks, DX012 offers both analogue and AES digital output options in a compact 1U form factor.
The DX012 connects via a single Cat5e cable to the dLive Surface, dLive MixRack, AHM-64 mattrix processor, Avantis mixer, SQ mixer or upstream DX expander via a secure EtherCon port.
A second locking EtherCon port is provided for redundant connection to compatible hardware, or for daisy-chaining to a downstream DX expander for additional remote I/O.
Each DX012 provides 12 XLR outputs, configurable as:
12 analogue line outputs
8 analogue line outputs + 4 stereo AES outputs
4 analogue line outputs + 8 stereo AES outputs
Features:
- Compatible with SQ, Avantis and dLive systems
- 1-4 Analogue Line Out
- 5-8 Analogue Line out or AES Digital out (switchable)
- 9-12 Analogue Line out or AES Digital out (switchable)
- Cascade mode allows daisy-chaining of up to 2 DX Expanders on each DX port
- Redundant DX connection to compatible hardware
- Up to 16 DX012 units can be added to a SQ system
- Up to 16 DX012 units can be added to an Avantis system
- Up to 46 DX012 units can be added to a dLive S Class system
- Up to 22 DX012 units can be added to a dLive C Class system
- Up to 8 DX012 units can be added to an AHM-64 system
- Rack-mounted (1u) or shelf/floor operation
- Plug and Play – no IP addressing required
- Compatible with CAT5e (or higher) cables of up to 100m
- Locking EtherCon ports
Specifications:
- Digital Outputs: AES3 2 Ch XLR, 2.5V balanced, terminated 110Ω
- Sample Rate: 44.1kHz, 48kHz, 88.2kHz, 96kHz
- Analogue XLR Outputs: Balanced, Relay protected
- Output Impedance: <60Ω
- Nominal Output: +4dBu = 0dB meter reading
- Maximum Output Level: +22dBu
- Residual Output Noise: -95dBu (22Hz-22kHz)
- THD+N: -98dB (0dBu, 1kHz)
- Operating Temperature Range: 0°C to 40°C (32°F to 104°F)
- Mains Voltage Operating Range: 100-240V AC, 50/60Hz
- Mains Power Consumption: 35W max
- DX012: 482.6 x 48.2 x 214.7 mm x 2.95kg (19″ x 1.9″ x 8.5″ x 6.5lbs)
- DX012 (boxed): 600 x 335 x 150 mm x 4.1kg (23.6″ x 13.2″ x 5.9″ x 9lbs)
Additional information
| Weight | 10.0 lbs |
|---|
