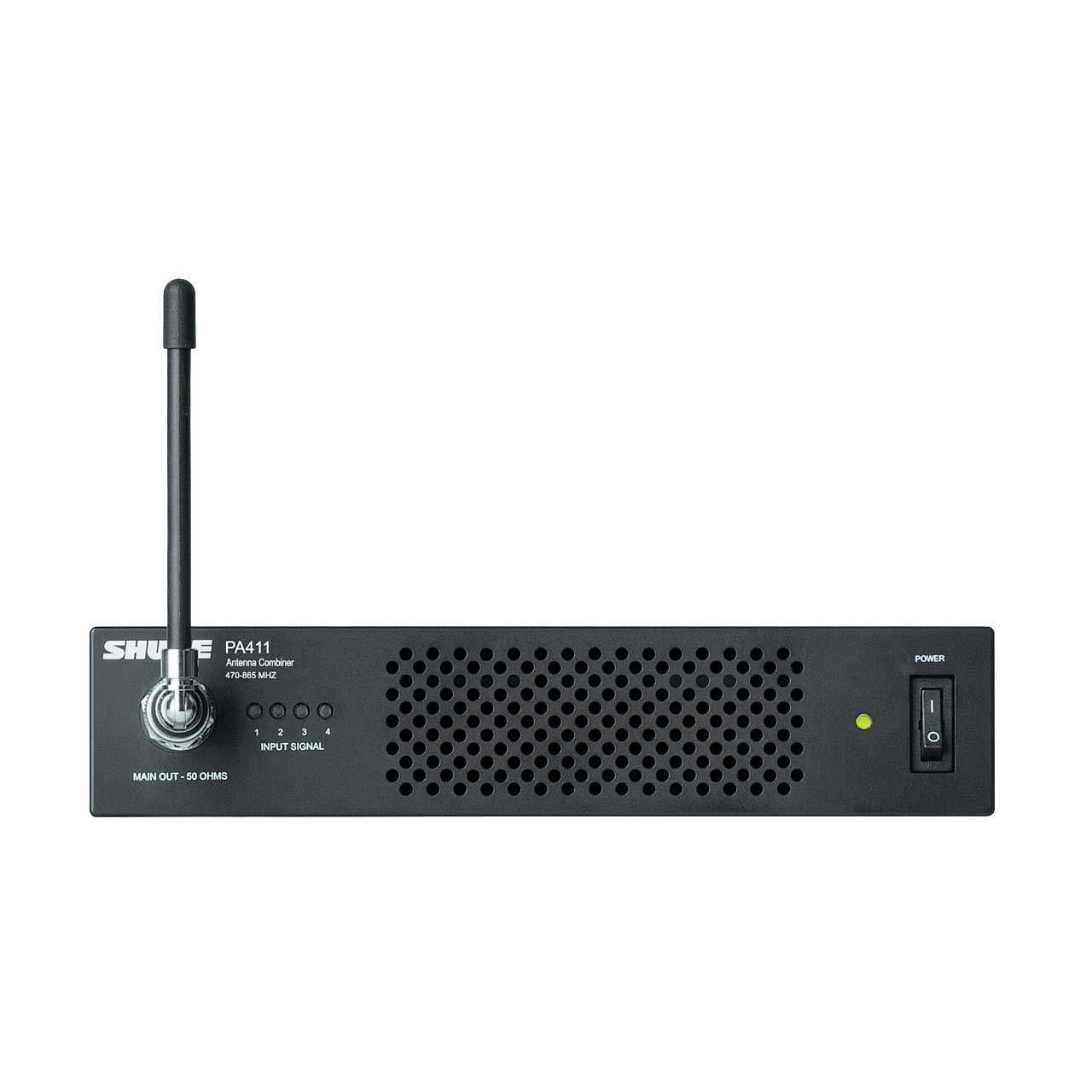

Shure PA411 Four Port Antenna Combiner
Original price was: $1,081.00.$866.00Current price is: $866.00.
Shure PA411 Four Port Antenna Combiner. Gear by The Penn Group.
Out of stock
Description
The Shure PA411 Antenna Combiner distributes DC power and RF signal for up to four Shure PSM 300 transmitters. The compact half-rack system significantly reduces the amount of antennas and power supplies needed when using multiple systems.
Features:
- Wideband 470 to 865 MHz frequency range
- RF LED Indicators display signal present and signal overload per input
- Power output distributes DC power for up to 4 P3T transmitters (accessory power cable included)
- Front panel power switch
Specifications:
- Power Requirements 15 VDC.
- DC Output 12 VDC (x4).
- Output Current – Combined total from all DC outputs: 1.4 A, maximum.
- Operating Temperature Range -18 °C to 63 °C’
- Dimensions 42 x 177 x 198 mm H x W x D.
- Net Weight 1.62 kg (3.6 lbs).
- RF Input Connector Type BNC.
- RF Frequency Range 470 to 865 MHz.
- Maximum Input Level 20 dBm Per Channel.
- Input Port Isolation 50 dB, typical.
- RF Input Power Operating Range Per Channel: 4.5 to 15 dBm.
- LED Indicator Minimum Detection Threshold 3 dBm ± 1 dB.
- RF Overload LED Threshold 17.5 dBm ± 1 dB.
- Impedance 50 Ohm.
- RF Output RF Frequency Range 470 to 865 MHz.
- Output Intercept Point (OIP3) 48 dBm, typical.
- Connector Type BNC.
- Impedance 50 Ohm.
- Reverse Isolation Output to Input; 40 dB, typical
- Gain Input to any Output Port: -5 to 0 dB.
