Description

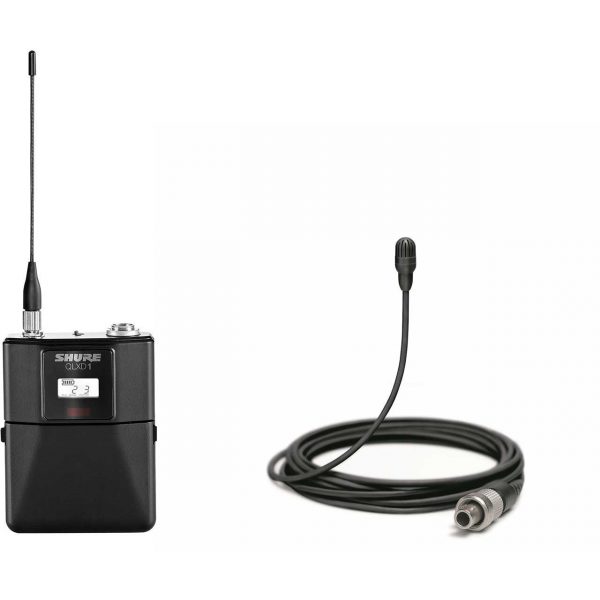

QLXD1 Wireless Bodypack Transmitter
The QLXD1 quickly syncs with a wireless receiver over IR at the push of a button and maintains a clear, uninterrupted signal over its entire range. Featuring transparent 24-bit digital audio quality and incredibly efficient RF spectrum usage, the QLXD1 Wireless Bodypack
Shure TwinPlex™ Subminiature Lavalier Mic
The Shure TwinPlex™ TL47 subminiature lavalier microphone features an expressively natural sound signature with a durable and paintable 1.6 mm cable. Available in multiple color and connector options. The expressively natural sounding TwinPlex™ TL47 is available with connector options for most bodypack transmitters, color options that meet numerous situational needs, and mounting choices for all professional applications. The low sensitivity can handle the most critical acoustic environments without distortion, and the 1.6 mm paintable cable stands up to the most demanding use. With extensive solutions for any application, it’s the go-to line for flexibility.
Features:
- QLXD1 Wireless Bodypack Transmitter
- Works with QLX-D Digital Wireless Systems
- Offers up to 9 hours of continuous use with 2 AA alkaline batteries or up to 10 hours of continuous use with Shure lithium-ion rechargeable batteries
- Over 120 dB of dynamic range: no transmitter gain adjustments needed
- AES 256-bit encryption for secure transmission
Shure TwinPlex™ Subminiature Lavalier Mic
- With a variety of colors and connectors, the TL47 is ideal for nearly any application
- Twice the surface area of other subminiature microphones for pristine, natural response and robust low-frequency response due to the patent pending dual-diaphragm design
- Improved off-axis consistency yields accurate reproduction regardless of vocal source position or movement
- Best-in-class low self-noise and dynamic range for cleaner audio production
Specifications:
- QLXD1 Wireless Bodypack Transmitter
- Radio Frequency Range: 20 Hz-20 kHz
- Rechargeable components? Yes
- Battery Requirements: 2 AA alkaline batteries or SB900 Lithium-Ion Rechargeable Battery
- Battery Life: Shure SB900: Up to 10 hours, Alkaline: Up to 9 hours
- Typical Operating Distance: 100 m (330 ft) line of sight
- Shure TwinPlex™ Subminiature Lavalier Mic
- Microphone Capsule: Dual-Diaphragm, Prepolarized Condenser
- Polar Pattern: Omnidirectional
- Frequency Response: 20 Hz to 20 kHz
- Sensitivity: -45.0 dBV(5.62 mV) at 1 kHz
- Self-Noise: 24.5 dB SPL-A
- Signal-To-Noise Ratio: 69.5 dB
- Output Clipping Level: 3.0 dBV,1 kHz
- Maximum SPL: 142.0 dB SPL
- Dynamic Range: 117.5 dB
- Microphone Current Draw: 120 to 240 µA, typical
- Bias Voltage: 5 VDC
- Housing: Molded ABS
- Polarity LEMO, NC, MDOT: Positive pressure at diaphragm leads to negative voltage with respect to ground voltage with respect to ground
- Polarity MTQG, XLR connector: Positive pressure at diaphragm leads to positive voltage with respect to ground
- Cable Diameter: 1.6 mm
- Cable Length: 66 in. (1.67 m)
- Microphone Length: 13.5 mm
- Microphone Diameter: 5.6 mm
- Net Weight with Cable: 12.0 g (0.42 oz.)
Item Includes:
- 1x Shure QLXD1 Bodypack Transmitter and TwinPlex Low Sensitivity Black Lavalier Mic Kit – 534-598MHz
