Description
Featuring the WL93 lavalier microphone, QLXD14/93 combines professional features with simplified setup and operation.
The QLXD14/93 Lavalier Wireless Microphone System is part of the QLX-D wireless systems family.
QLX-D delivers outstanding wireless functionality ideal for mid-size events and installations in businesses, hotels, and government offices with conferencing spaces; schools, houses of worship, and live performance spaces.
Features:
- WL93
- Series Subminiature Lavalier Microphones
- Wireless micro-miniature lavalier mic provides full, clear sound.
- QLXD4
- Digital Wireless Receiver
- Half-rack QLXD4 Digital Wireless Receiver quickly finds open frequencies and deploys them to transmitters via the one-touch sync function.
- QLXD1
- Wireless Bodypack Transmitter
- QLXD1 Wireless Bodypack Transmitter quickly syncs with a wireless receiver over IR at the push of a button and maintains a clear, uninterrupted signal over its entire range.
Specifications:
- RF Carrier Range: 470–937.5MHz, varies by region
- Working Range: 100 m (328 ft)
- Note: Actual range depends on RF signal absorption, reflection and interference.
- RF Tuning Step Size: 25 kHz, varies by region
- Image Rejection: >70 dB, typical
- RF Sensitivity: ?97 dBm at 10?5 BER
- Latency: <2.9 ms
- Audio Frequency Response: QLXD1: 20 Hz – 20 kHz (±1 dB)
- QLXD2: Note: Dependent on microphone type
- Audio Dynamic Range System Gain @ +10: >120 dB, A-weighted, typical
- Total Harmonic Distortion ?12 dBFS input, System Gain @ +10: <0.1%
- System Audio Polarity: Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output.
- Operating Temperature Range: -18°C (0°F) to 50°C (122°F)
- Note: Battery characteristics may limit this range.
- Storage Temperature Range: -29°C (-20°F) to 74°C (165°F)
- Note: Battery characteristics may limit this range.

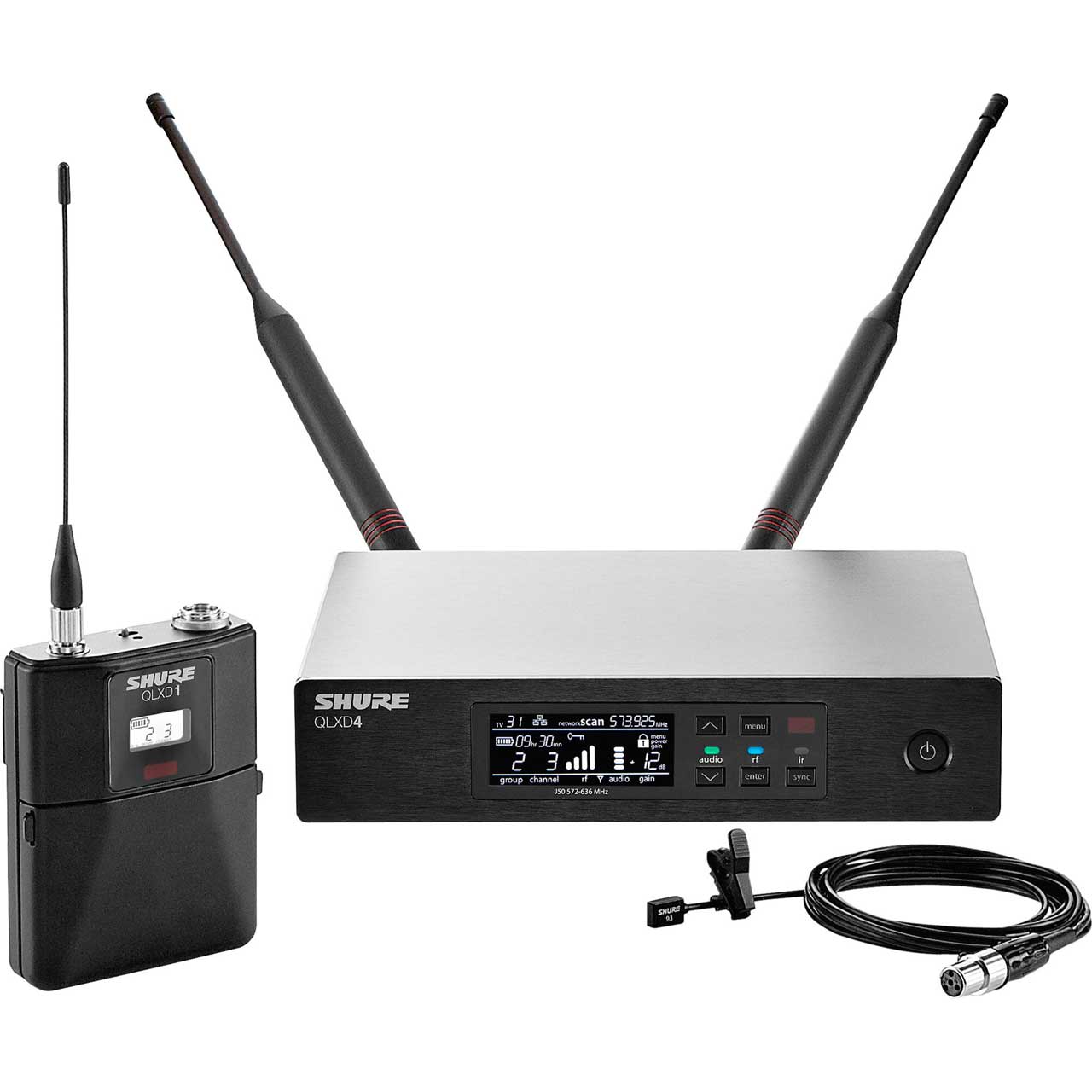

Item Includes:
- WL93 Lavalier Microphone
- QLXD1 Bodypack Transmitter
- QLXD4 Receiver
