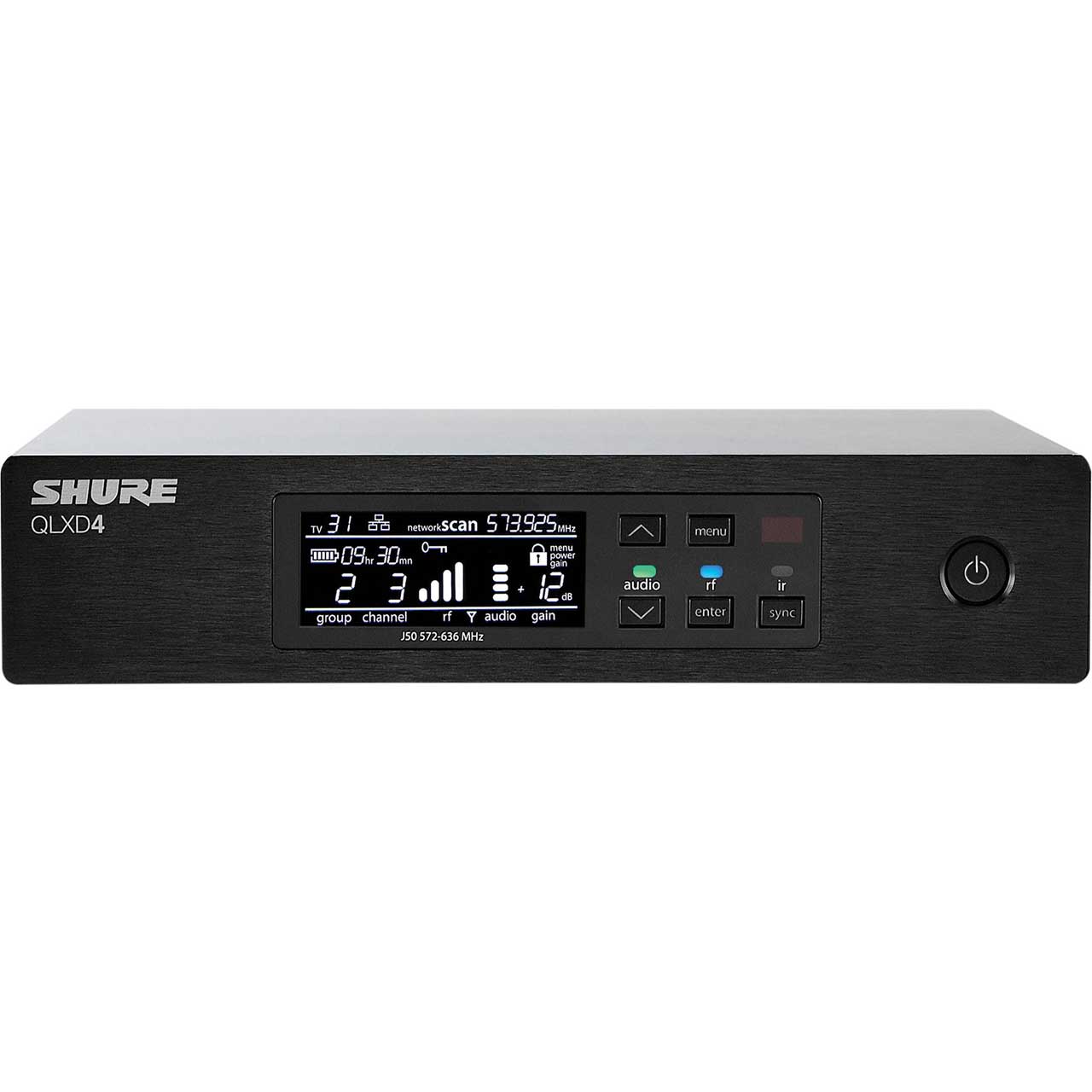

Shure QLXD4-J50A Half-Rack – Single Channel Receiver
Original price was: $920.00.$747.00Current price is: $747.00.
Shure QLXD4-J50A Half-Rack – Single Channel Receiver. Gear by The Penn Group.
Out of stock
Description
The Shure QLXD4-J50A is a digital wireless receiver that combines professional features with streamlined set-up and operation. Features include Automatic Channel scan, Networked Channel Scan, digital predictive switching, and AES 256 encryption for security.
Features:
- 64 MHz tuning bandwidth (region dependent)
- More than 60 preset compatible channels per frequency band (region dependent)
- Up to 17 compatible systems per 6 MHz TV channel; 22 systems per 8 MHz channel
- Digital predictive switching diversity ensures solid RF connection
- AES 256-bit encryption for secure wireless transmission
- Up to 60 dB of adjustable audio gain
- High-contrast LCD menu and controls with lockout feature
- Audio and RF LED meters with peak indicator
- Detachable ½ wave antennas
- Mic / line switchable XLR output
- 1/4″ Instrument output
- Durable aluminum construction with brushed finish
Specifications:
- RF Carrier Range: 470-937.5MHz, varies by region
- Working Range: 328ft (100m)
- RF Tuning Step Size: 25kHz, varies by region
- Image Rejection: >70dB, typical
- RF Sensitivity: -97dBm @ 10-5 BER
- RF Spurious Rejection: >80dB, typical
- RF Connector Type: BNC
- Impedance: 50Ω
- Latency: <2.9ms
- Gain Adjustment Range: -18 – 42dB in 1dB steps
- Mic/Line Switch: 30dB pad
- Audio Frequency Response: 20Hz – 20kHz (±1dB)
- Audio Dynamic Range System Gain @ +10: >120dB, A-weighted, typical
- Total Harmonic Distortion: -12dBFS input, System Gain @ +10: <0.1%
- System Audio Polarity: Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output.
- Network Interface: Single Port Ethernet 10/100Mbps
- Network Addressing Capability: DHCP or Manual IP address
- Maximum Cable Length: 328ft (100m)
- Operating Temperature Range: 0°F – 122°F (-18°C – 50°C)
- Storage Temperature Range: -20°F – 165°F (-29°C – 74°C)
- Dimensions (HxWxD): 1.63″ x 7.75″ x 5.94″ (41mm x 197mm x 151mm)
- Weight: 1.71lbs (777g), without antennas
Item Includes:
- 1x PS24 Power supply
- 2x 1/2 Wave Antenna
- 2x BNC Cable
- 2x BNC Bulkhead Adapter
- 1x Rackmount Kit
- 1x Rackmount Bracket-Long
- 1x Rackmount Bracket-Short
- 1x Link plate
- 4x Receiver Rubber Feet
Additional information
| Weight | 7.5 lbs |
|---|
