Shure ULXD1 Digital Wireless Bodypack TX with Miniature 4-Pin Connector – H50 530-602 MHz
Original price was: $834.00.$595.00Current price is: $595.00.
Shure ULXD1 Digital Wireless Bodypack TX with Miniature 4-Pin Connector – H50 530-602 MHz. Gear by The Penn Group.
In stock
Description

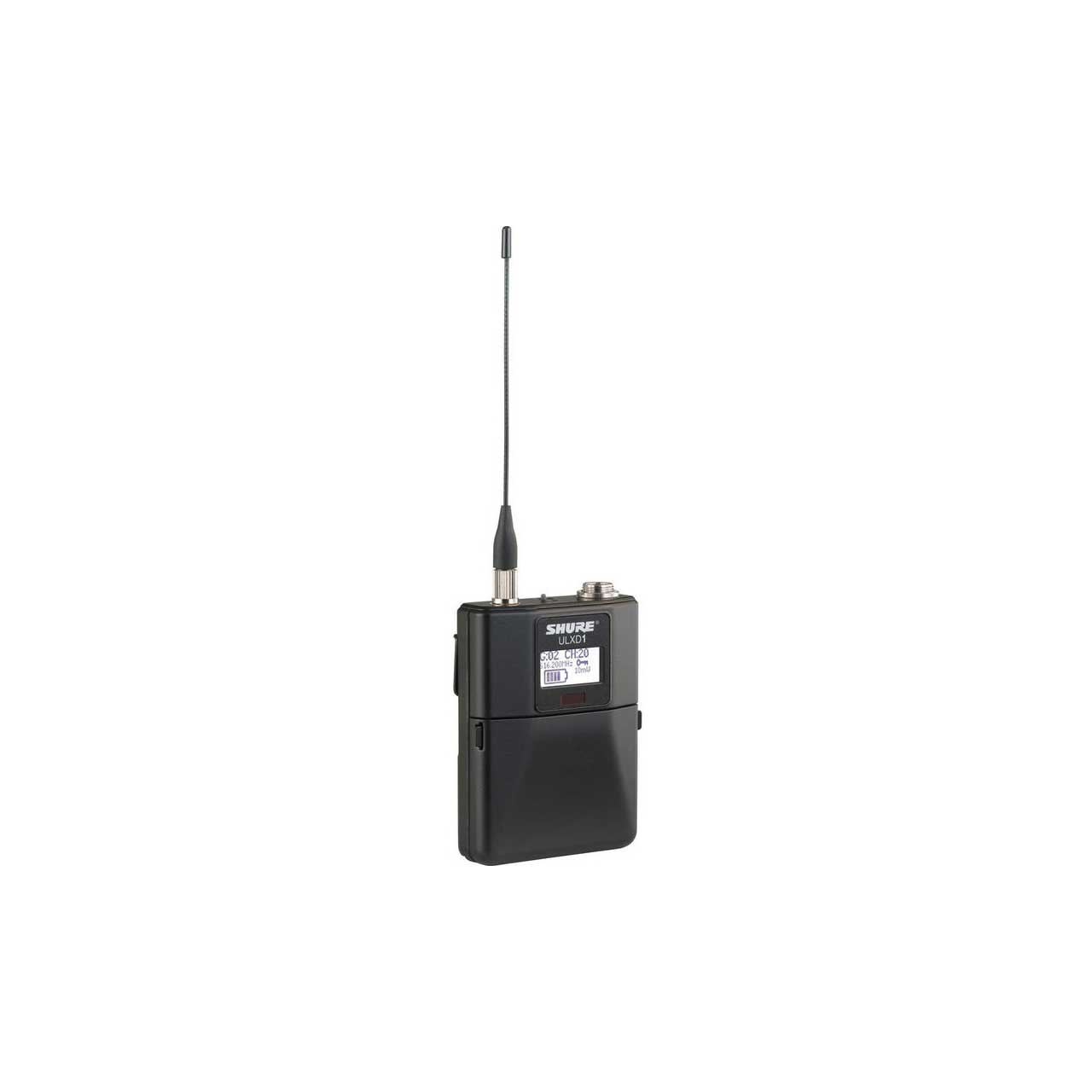

The ULXD1 Wireless Bodypack Transmitter by Shure is for capturing audio. It can be used in various environments, when paired with a ULXD4 receiver for applications such as, theater, stage, broadcast TV, DJ setups, and more. The ULXD1 compact bodypack transmitter is enclosed in a rugged metal housing with a TA4-M (4-pin male) audio input connector and features a comprehensive LCD display.
The ULXD1 features pristine, compandor-free digital transmission for uncompromising sound quality, range and detail. Its 256-bit encryption keeps wireless transmissions secure, and its adjustable RF output power delivers maximum range wherever necessary. The ULXD1 operates on either alkaline AA batteries or Li-Ion rechargeable batteries for up to 12 hours.
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
Features:
- H50 / 534 to 598 MHz
- For Use with ULXD4 Receiver
- TA4-M (4-Pin) Input Connection
- Uncompromising Digital Audio Quality
- AES 256-bit encryption for applications requiring secure data transmission.
- Proprietary Shure gain ranging optimizes the system’s dynamic range for any input source, eliminating the need for transmitter gain adjustments.
- Shure SB900 Lithium-Ion rechargeable battery provides up to 12 hours of battery life, precision metering with 5-segment battery fuel gauge, and zero memory effect.
- External charging contacts for docked charging (with the SBC200 dual docking charger).
- Backlit LCD with easy to navigate menu and controls.
- Rugged metal construction
- Detachable 1/4 wave antenna
- Frequency and power lockout
Specifications:
- Frequency Band: H50: 537 to 598 MHz
- Gain Offset Range: 0 to 21 dB (in 3 dB steps)
- Battery Type: Shure SB900 Rechargeable Li-Ion or AA batteries, Battery Runtime @ 10 mW: , Shure SB900: > 12 hours, Alkaline: 11 hours
- Housing: Cast aluminum
- Audio Input Connectors: 4-Pin male mini connector (TA4M), Configuration: Unbalanced
- Impedance: 1 Mega ohm
- Maximum Input Level: Pad Off: 8.5 dBV (7.5 Vpp), Pad On: 20.5 dBV (30 Vpp)
- EIN: Preamplifier Equivalent Input Noise (EIN), System Gain Setting = +20: 120 dBV, A-weighted, typical.
- RF Output: SMA.
- Antenna: 1/4 wave
- Impedance: 50 ohms
- Bandwidth: Occupied Bandwidth: < 200 kHz
- Modulation: Shure Proprietary Digital
- Power: 1 mW, 10 mW, 20 mW
- Operating Range: 300′ (100m)
- Frequency Response: 20 Hz to 20 kHz (±1 dB), flat, Note: Dependent on microphone type
- Dimensions (HxWxD): 3.4 x 2.6 x 0.9″ (86 x 66 x 23 mm)
- Weight: 142 g (5.0 oz), without batteries.
Additional information
| Weight | 0.9 lbs |
|---|
