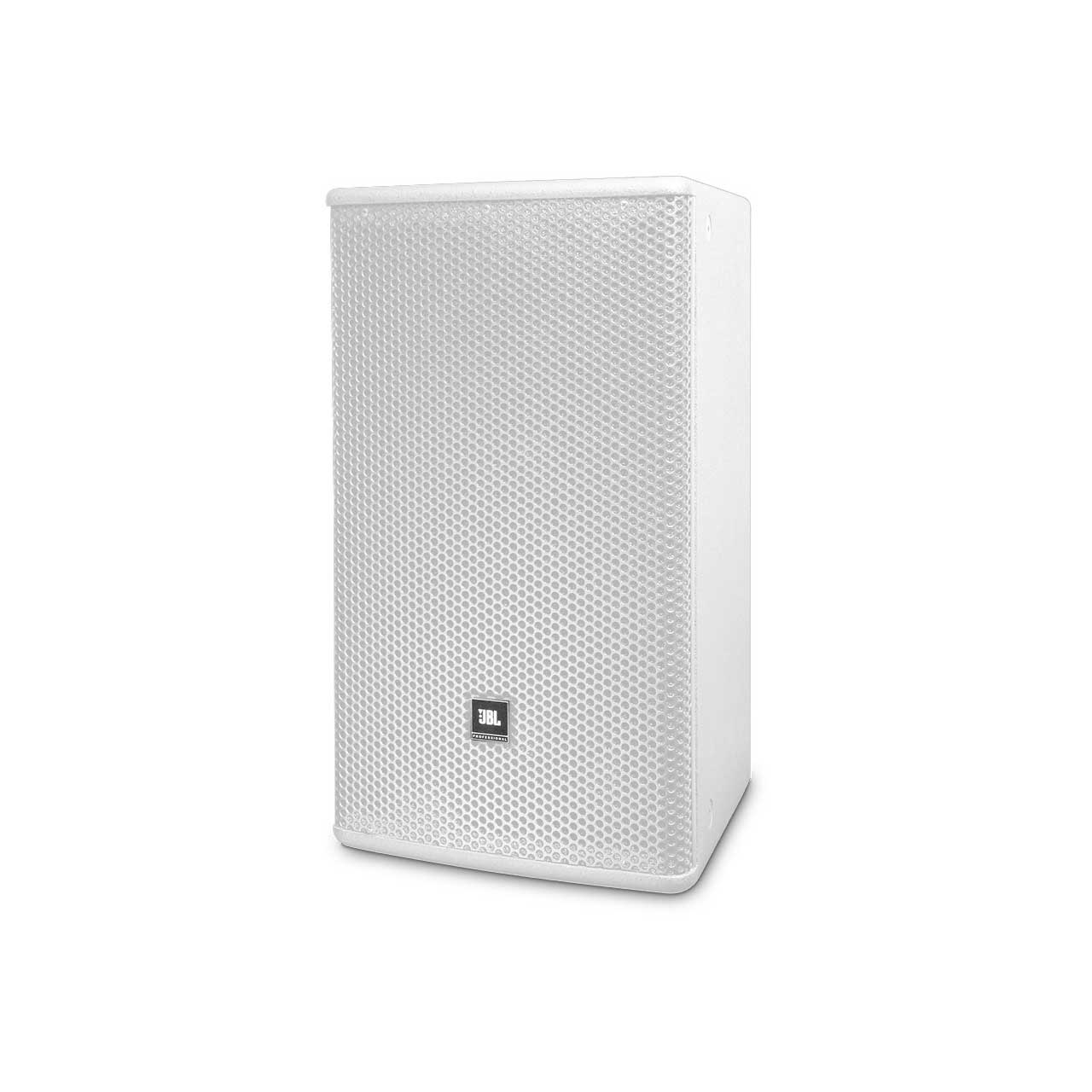

JBL AC195-WH 10-Inch 2-Way Full-Range System – White

$1,335.00

JBL AC195-WH 10-Inch 2-Way Full-Range System – White. Gear by The Penn Group.

This product drop ships directly from the manufacturer. Products generally ship within 3-10 business days.

SKU: JBL-AC195-WH Categories: , Brand:

Description

The white AC195 10″ 2-Way Full-Range Passive Loudspeaker System from JBL features one 10″ low frequency driver and one 1″ exit/1.5″ voice-coil compression driver. The rotatable PT Progressive Transition waveguide provides 90 x 50° coverage in vertical cabinet orientation. High-slope passive crossovers minimize band overlap and offer well-controlled off-axis response.

The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of a MultiMount or similar type of mounting hardware.

Applications
Performing Spaces
Clubs and Bars
Houses of Worship
Multimedia Spaces
Retail and Hospitality Spaces
Presentation Suites
Educational Facilities

Features:

  • 5/8″ enclosure
  • 10″ LF transducer
  • 90 x 50° Progressive Transition Field Rotatable Waveguide with a 1″ exit/1.5″ voice-coil compression driver
  • Dual Neutrik NL4 connectors plus screw terminals
  • Multiple attachment points for flexibility

Specifications:

  • Active or Passive: Passive
  • Frequency Response: ± 3dB 85 Hz to 18 kHz
  • Frequency Range: -10 dB: 68 Hz to 20 kHz
  • Power Capacity: 300 W (1200 W peak), 2 Hours: 200 W/400 W/800 W (Continuous/Program/Peak)
  • System Power Rating (AES): 300 W (1200 W peak), 2 hours
  • Maximum Sound Pressure Level (SPL): 3.2′ (1 m): 118 dB (124 dB peak)
  • Nominal Sensitivity: 1 W @ 3.2′ / 1 m: 95 dB
  • Impedance: 8 Ohms
  • Coverage Pattern: 90 x 50° (H x V)
  • Crossover: 1.8 kHz
  • Low Frequency Driver: 1 x 10″ (254 mm) woofer (P/N: 5050692) with 2.5″ (63.5 mm) voice-coil
  • High Frequency Driver: 1 x 2408H-2 driver with 1″ (25.4 mm) exit/ 1.5″ (38 mm) voice-coil
  • Enclosure Material: 5/8″ (15 mm) multi-ply hardwood plywood
  • Grille: Powder coated, 0.05″ (1.5 mm) perforated steel, with acoustically transparent black foam backing
  • Input Connections: Dual Neutrik NL4MP connectors plus covered barrier trip terminals
  • Mounting: 14 x M10 threaded suspension points, 4 x M10 for wall mount bracket
  • Dimensions: 21 x 12.2 x 12.9″
  • Weight: 28.8 lb (13.1 kg)

Additional information

Weight 39.0 lbs
