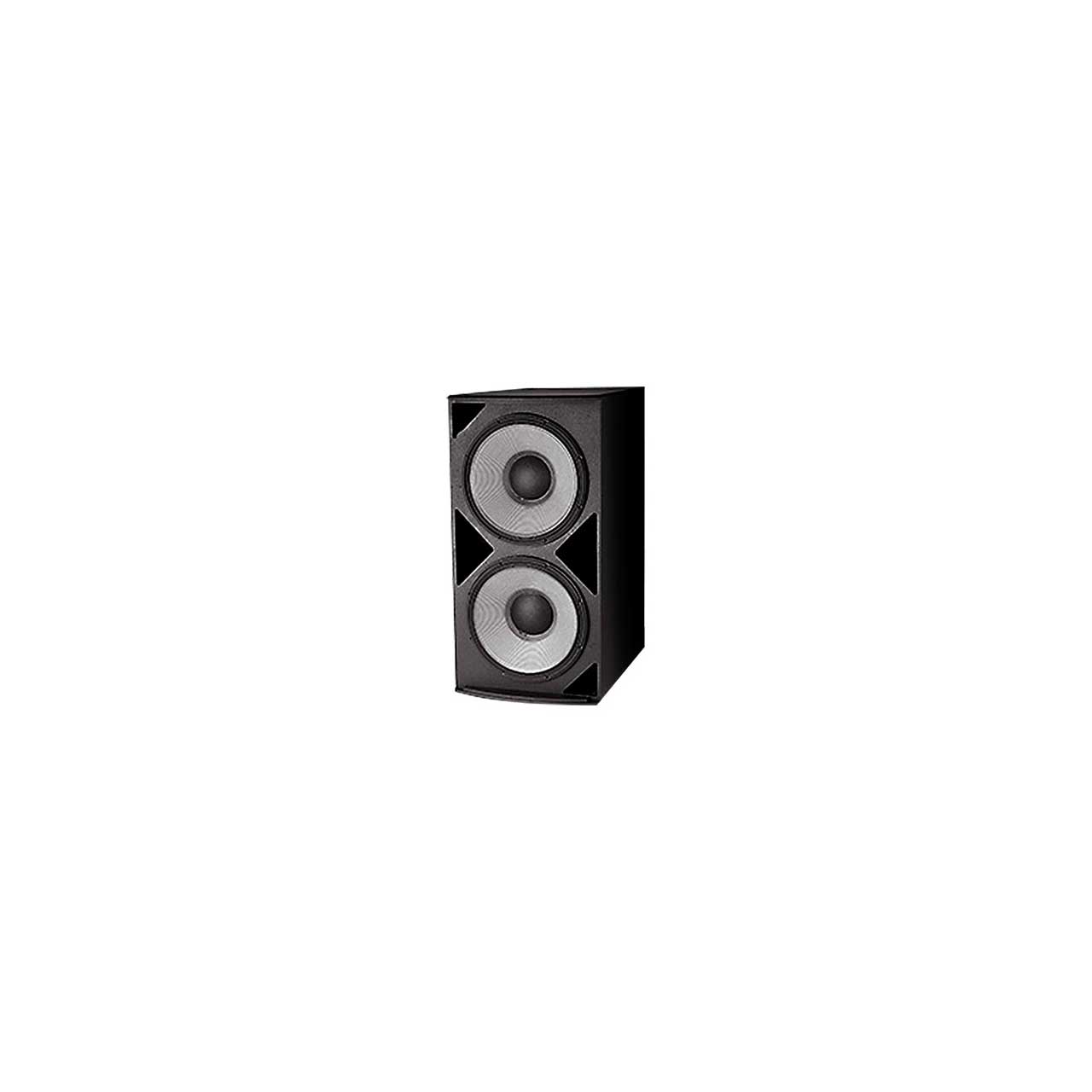

JBL ASB6128 High Power Subwoofer Dual 18 Inch 2242H SVG Driver
$4,800.00
JBL ASB6128 High Power Subwoofer Dual 18 Inch 2242H SVG Driver. Gear by The Penn Group.
This product drop ships directly from the manufacturer. Products generally ship within 3-10 business days.
Description
ASB6128 is a high power subwoofer system comprised of two 460 mm (18 in) SVG Super Vented Gap low frequency drivers in a front-loaded, vented configuration. The deep cabinet allows for extended low frequency bandwidth with minimum frontal profile. The rectangular cabinet is fitted with M10 threaded suspension points.Pre-engineered array bracketry is available.
ASB6128 is part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of applications.
Features:
- 2×18 Inch 2242H SVG Driver
- Large vent area for high output.
- Parallel/Discrete Switchable.
- For fixed installation applications such as performing arts facilities, theatrical sound design, auditoriums, houses of worship, live clubs, dance-clubs/discotheques, sports facilities and themed entertainment venues.
- Performing arts facilities
- Theatrical sound design
- Auditoriums
- Houses of worship
- Live clubs
- Dance-clubs/discotheques
- Sport facilities
- Themed entertainment venues
Specifications:
- Frequency Range: 28 Hz – 1 kHz (-10 dB)
- Frequency Response: 35 Hz – 1 kHz ( ± 3 dB)
- Input Modes: Drivers Parallel / Drivers Discrete
- Transducer Power Rating (AES): 2400 W (9600 W peak), 2 hrs
- Long-Term System Power Rating (IEC): 1600 W (6400 W peak), 100 hrs
- Maximum SPL: 30 Hz – 100 Hz: 136 dB-SPL cont avg (142 dB peak); 100 Hz – 500 Hz: 136 dB-SPL cont avg (142 dB peak)
- System Sensitivity (dB-SPL, 1W @ 1m): 30 Hz – 100 Hz: 102 dB
- 100 Hz – 500 Hz: 102 dB
- Nominal Impedance: 4 ohms in parallel-drive mode 2 x 8 ohms in discrete-drive mode
- Dimensions (H x W x D in vertical cabinet orientation): 1094 x 561 x 816 mm (43.1 x 22.1 x 32.2 in)
- Enclosure: Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood
- Suspension Attachment: 12 points (3 top, 3 bottom, 2 each side, 2 rear), M10 threadedhardware
- Finish: Black DuraFlex finish. White available upon request.
- Grille: Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
- Input Connector: NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG)wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
Additional information
| Weight | 309.76 lbs |
|---|
