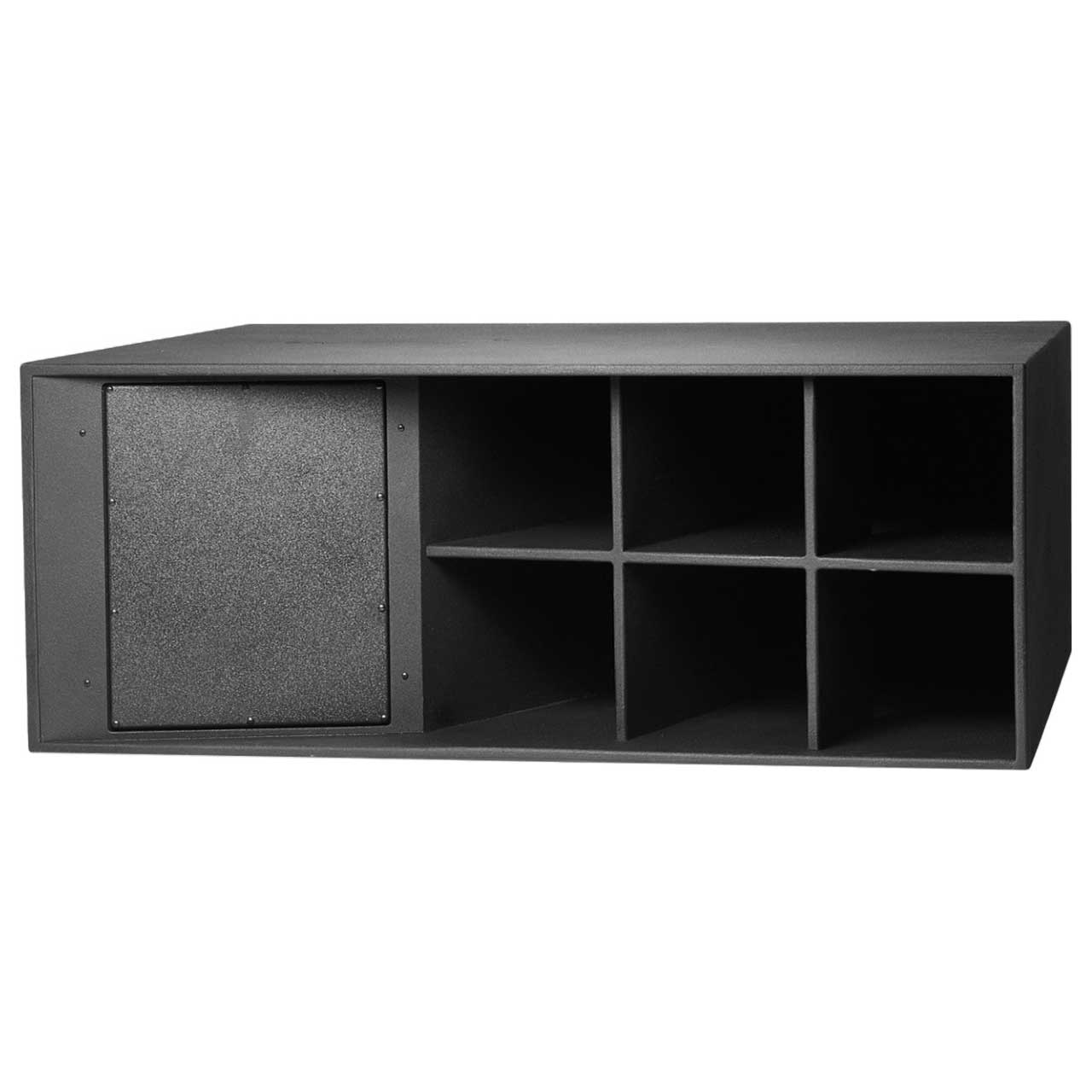

JBL ASH6118 Single 18 Inch Hornloaded Subwoofer
$4,933.70
JBL ASH6118 Single 18 Inch Hornloaded Subwoofer. Gear by The Penn Group.
This product drop ships directly from the manufacturer. Products generally ship within 3-10 business days.
Description
The JBL ASH6118 is a high power hornloaded subwoofer system comprised of one 460 mm (18 in) SVG Super Vented Gap low frequency driver. Designed to be used in multiples (2 minimum, 4 optimum) with proximity placement or with proper boundary surface loading
Maximum low frequency output & sensitivity
Excellent “punch.”
For fixed installation applications requiring maximum low frequency output, such as dance-clubs/discotheques, live clubs, performing arts facilities, theatrical sound design, auditoriums, houses of worship, sports facilities and themed entertainment venues
Features:
- Designed to be used in multiples (2 minimum, 4 optimum) with proximity placement or with proper boundary surface loading
- Maximum low frequency output & sensitivity
- Excellent “punch.”
- For fixed installation applications requiring maximum low frequency output, such as dance-clubs/discotheques, live clubs, performing arts facilities, theatrical sound design, auditoriums, houses of worship, sports facilities and themed entertainment venues
Specifications:
- Frequency Range (-10 dB): 1 cabinet: 25 Hz – 250 Hz; 2 cabinets: 24 Hz – 250 Hz; 4 cabinets: 22 Hz – 250 Hz
- Frequency Response (±3 dB): 1 cabinet: 30 Hz – 200 Hz; 2 cabinets: 28 Hz – 200 Hz; 4 cabinets: 26 Hz – 200 Hz
- Transducer Power Rating (AES): 1 cabinet: 1200 W (4800 W peak), 2 hrs; 800 W (3200 W peak), 100 hrs; 2 cabinets: 2400 W (9600 W peak), 2 hrs; 1600 W (6400 W peak), 100 hrs; 4 cabinets: 4800 W (19200 W peak), 2 hrs; 3200 W (12800 W peak), 100 hrs
- Long-Term System Power Rating (IEC): 1 cabinet: 800 W (3200 W peak), 100 hrs; 2 cabinets: 1600 W (6400 W, peak), 100 hrs; 4 cabinets: 3200 W (12800 W peak), 100 hrs
- Maximum SPL: 30 Hz – 140 Hz: 1 cabinet: 133 dB-SPL, cont avg (139 dB peak); 2 cabinets: 138 dB-SPL cont avg (144 dB peak); 4 cabinets: 144 dB-SPL cont avg (150 dB peak)
- System Sensitivity (dB-SPL, 1W @ 1m): 30 Hz – 150 Hz; 1 cabinet: 102 dB; 2 cabinets: 104 dB; 4 cabinets: 107 dB|
- Nominal Impedance: 8 ohms per cabinet
Additional information
| Weight | 351.0 lbs |
|---|
