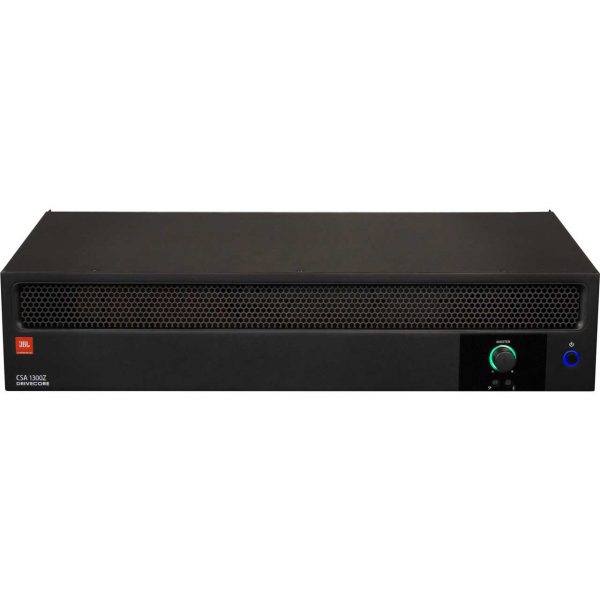

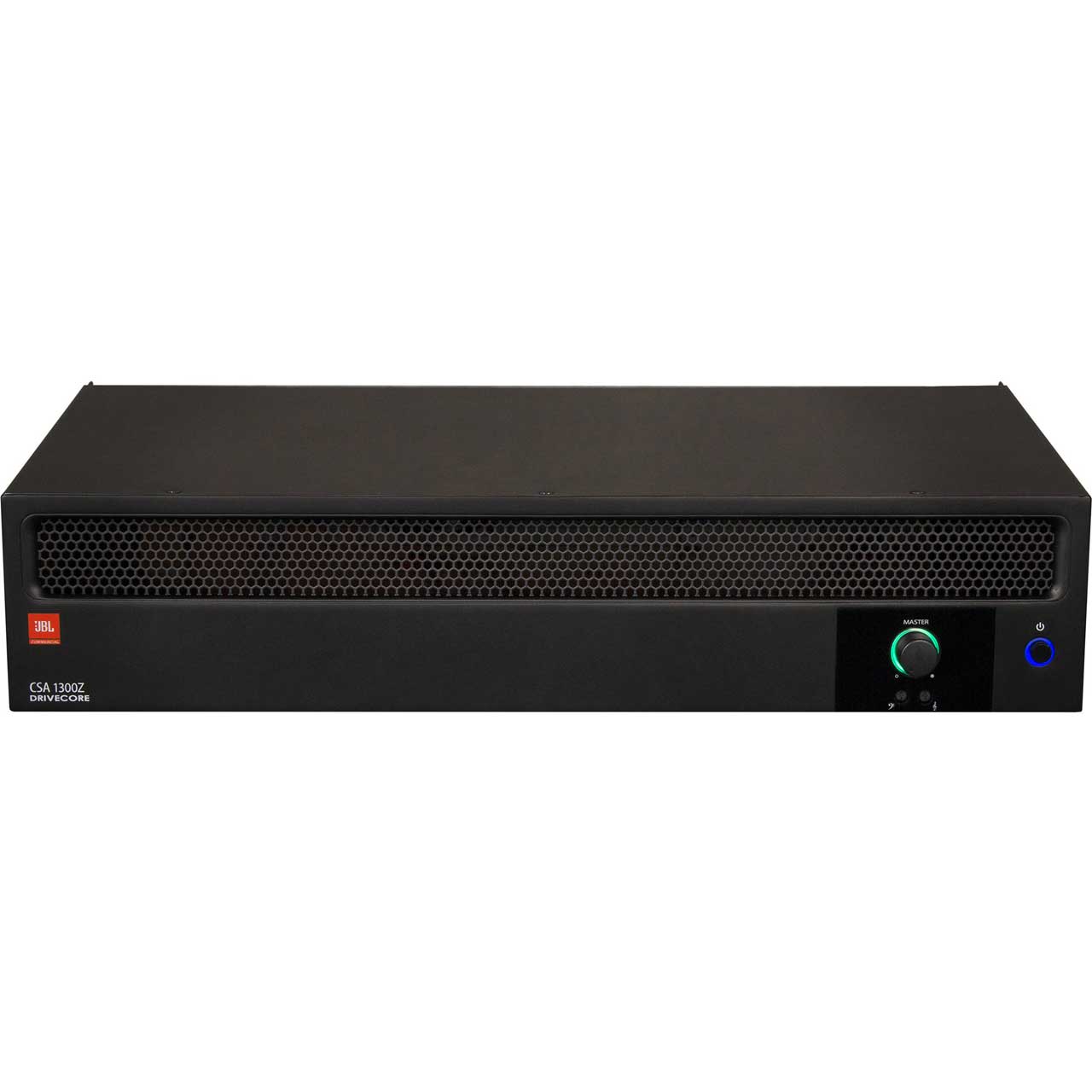

JBL CSA1300Z CSA 1300Z Single Channel 300W Audio Power Amplifier
$745.00
JBL CSA1300Z CSA 1300Z Single Channel 300W Audio Power Amplifier. Gear by The Penn Group.
This product drop ships directly from the manufacturer. Products generally ship within 3-10 business days.
Description
The JBL Commercial Series of Amplifiers are a professional tool designed and built for Installed sound applications. There are both single channel and two channel models. They provide amplification with a choice of low impedance, 70V or 100V outputs.
The product includes a rack mounting kit for installations to a cabinet. The system can be easily expanded with additional JBL Commercial Series products. Provisions are included for a remote volume control using the JBL CSR-V control module.
Features:
- 1 or 2 channels X 300W output
- Built-in 70V and 100V
- Space-saving 2 RU design
- Sleep mode disable function
- Energy-efficient amplifier
- Sleek industrial look with illuminated rings making knobs easy to see and use
- Supports JBL CSR-V wall controller via CAT5 cable with RJ45 connectors
- Euro-block style input connectors, barrier strip output connectors
- Independent Bass and Treble controls for each output channel
- Capable of RS232 control of volume, mute and sleep mode
Specifications:
- Rated Power into 4Ω or 8Ω; 1kHz, ? 0.5% THD: 300W
- Number of Output Channels: 1
- Insertion Loss (70V & 100V Outputs): 1 dB max
- Input Sensitivity (8Ω Load) Balanced line input: 775mVRMS
- Frequency Response (8Ω, 20Hz – 20kHz , tone controls set to flat response): +/- 1.0dB
- Total Harmonic Distortion (THD) (@ Full rated power, 20Hz-20kHz): <0,5%
- Signal-to-Noise Ratio (Ref. rated output, 22KHz BW, A-weighted): >97dB
- Input Impedance (nominal) Euro Block: 20 kΩ (balanced); RCA: 10 kΩ
- Maximum Input Level +22dBu (Norminal)
- Crosstalk (Ref. rated power, A-weighted, 1kHz): <-70 dB
- Tone Controls (Bass and Treble non-detented potentiometers on each channel): Bass +/-12dB @100Hz; Treble +/-12dB @10kHz
- Nominal AC Line Voltages: 100V, 120V, 220V, 230-240V, 50/60 Hz
- Operating Temperature/Humidity: 0°C to 35°C @ 95% R.H. (non-condensing)
- Storage Temperature: -20°C to 85°C
- Net Weight (preliminary estimate): 13.1 lb
- Dimensions: Width: 17.0 in. (432 mm) Depth: 10.8 in. (274 mm) Height: 3.5 in. (89 mm)
- Shipping Weight 16.4 lb
Additional information
| Weight | 15.6 lbs |
|---|
