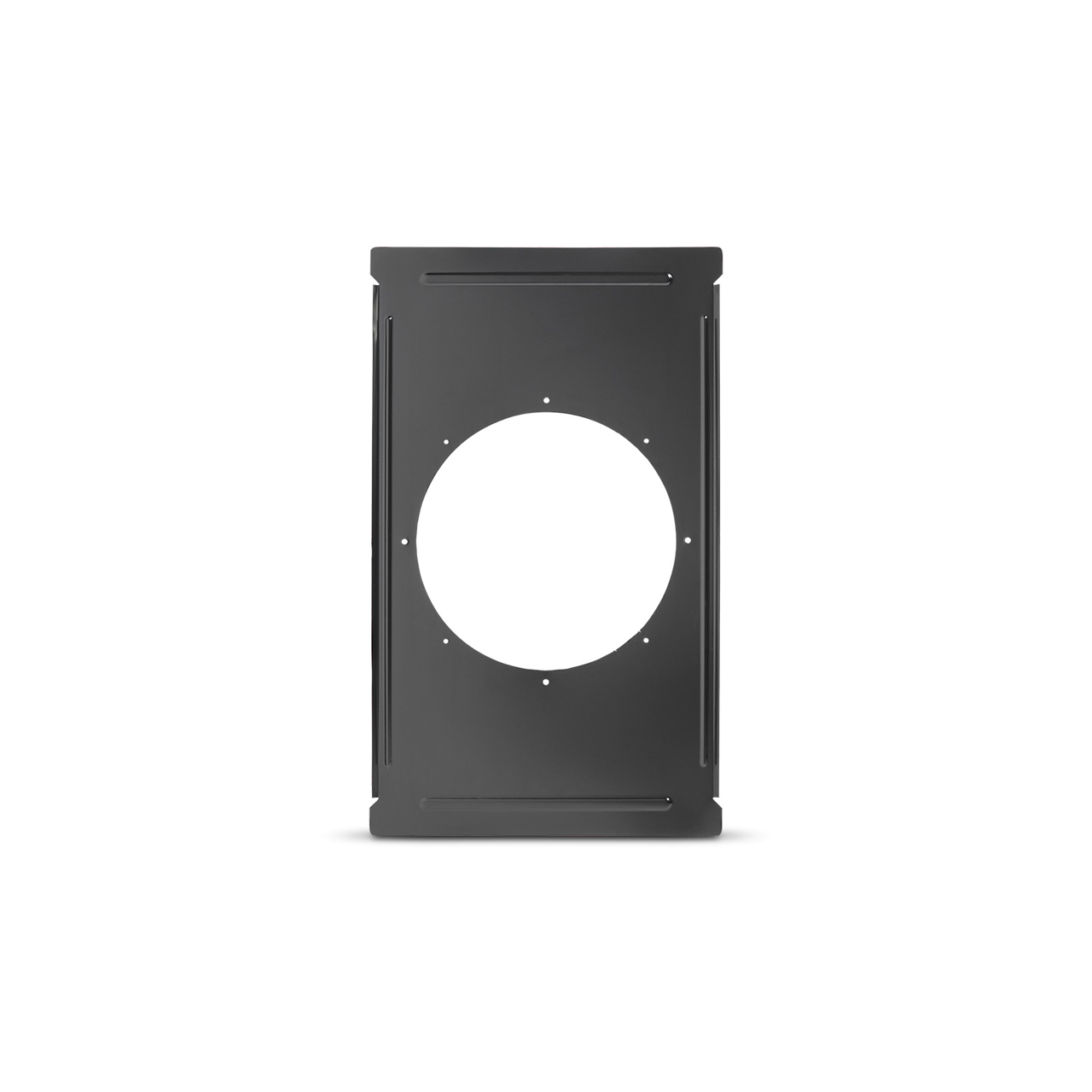

JBL MTC-81TB8 Pre-Install In-Ceiling Tile Bridge for Pre-Install Backbox – Fits 8138 Speaker and MTC-81BB8 backbox

$30.00

JBL MTC-81TB8 Pre-Install In-Ceiling Tile Bridge for Pre-Install Backbox – Fits 8138 Speaker and MTC-81BB8 backbox. Gear by The Penn Group.

In stock

SKU: JBL-MTC-81TB8 Categories: , Brand:

Description

The JBL MTC-81TB8 tile bridge is designed for use in applications requiring pre-installed backcans in suspended ceiling applications and is compatible with ceiling speakers having a 11.25″ (286mm) mounting circle diameter, such as the JBL 8138 ceiling loudspeaker, and the JBL MTC-81BB8 pre-install backbox.

Features:

  • Fits 8138 speaker and MTC-81BB8 backbox
  • Load-bearing bridge eliminates ceiling tile sag by distributing weight to the ceiling’s support system
  • Rust-resistant 19-Gauge (1mm thick) steel construction and e-coated finish ensures long service life
  • Fits 24″ (610mm) and 23.6″ (600mm) tile grids
  • Downloads

Specifications:

  • Material: 19 gauge (1.0mm thickness) steel, finished in black polymer e-coating for a high level of rust resistance
  • Attachment Points: 4x clip-nuts (ie, speed-clips, tinnerman clips) fit 4mm tapping screws attaching speaker to tile bridge
  • Thru-Holes: 4x thru-holes on 11.25″ (286mm) mounting circle for attaching tile bridge to backcan
  • Dimensions (LxD): 23.6″ x 14″ (600mm x 359mm)
  • Net Weight (each): 2.0lbs (0.9kg)
  • Shipping Weight: 2.7lbs (1.3kg)

Item Includes:

  • 1x JBL MTC-81TB8 Pre-Install In-Ceiling Tile Bridge

Warranty:

  • 1 Year Limited Warranty

Additional information

Weight 2.7 lbs
