Description

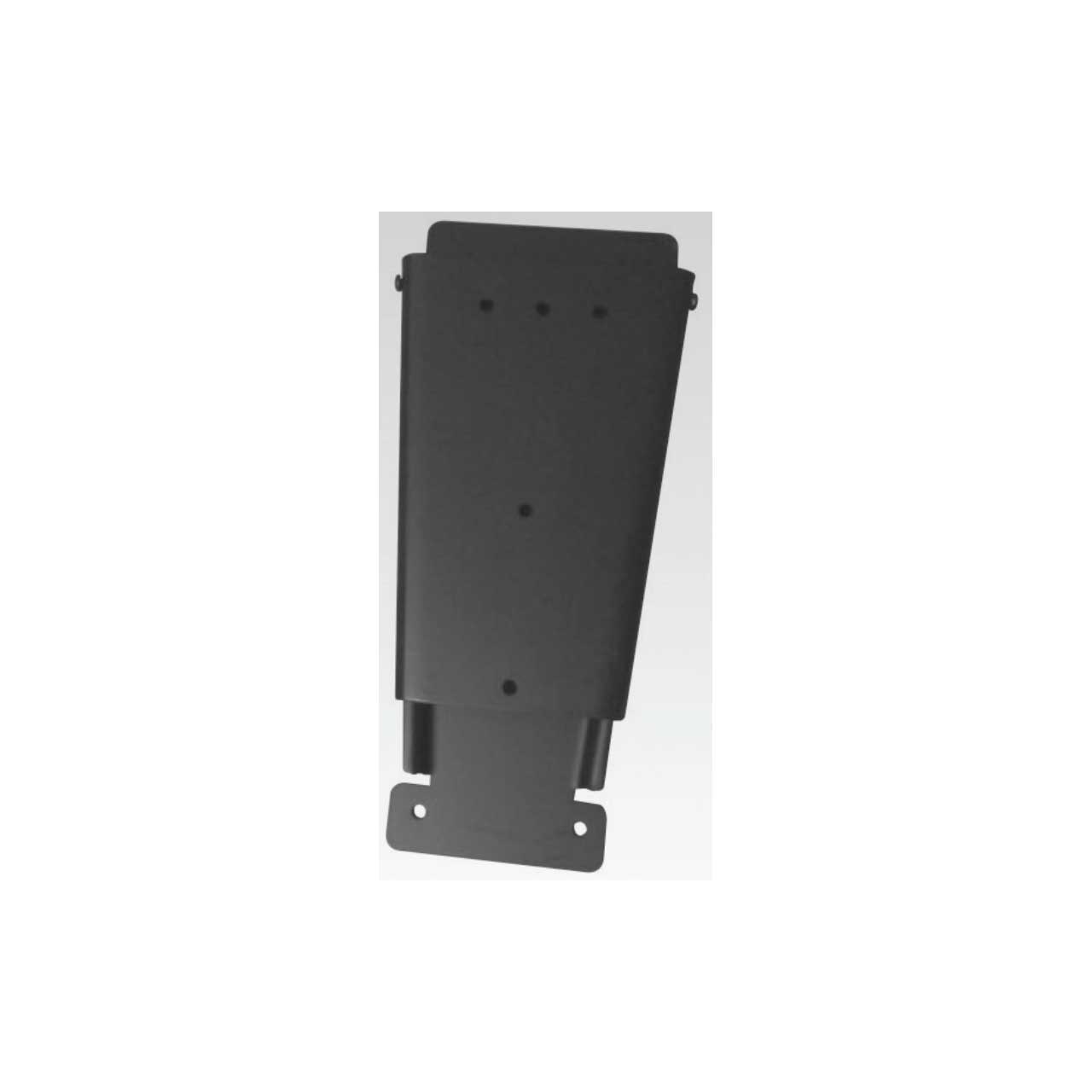

JBL MTC-CBT-FM2 is a low-profile, close-to-wall mounting bracket for use with JBL CBT 70J-1 and CBT 70J-1/70JE-1 array line array column speakers. For mounting speaker in typical vertical orientation (not for horizontal orientation). ROHS-compliant zinc plating for weather resistance. Use one or two for a single cabinet. Use one on each cabinet for 2 cabinet arrays. 3.5 mm thick (10-Gauge AWG) metal. Bracket assembly spaces back of speaker within 20 mm (0.77 inches) of wall (typical).
Features:
- FM2 is for use with CBT 70J-1 and CBT 70J-1/70JE-1 array
- Loudspeaker-Mount Section of bracket attaches to the included insert points on the back panel of the speaker (using the M6x15 mm bolts on FM2, and M8x20 mm bolts for FM3 flat washers & lock washers that come with the speaker)
- Mounting points are at 254 mm x 70 mm (10 x 2-3/4 inch) spacing
- Wall-Mount Section has 3 aligned holes vertically; 3 aligned holes horizontally
- Loudspeaker-Mount Section drops easily into Wall-Mount Section. Set screw holds securely
- 3.5 mm thick (10-Gauge AWG) Metal
- Bracket assembly spaces back of speaker within 20 mm (0.77 inches) of wall (typical)
Specifications:
- Material: 3.5mm thick (10-Gauge AWG) Metal
- Finish: Black
