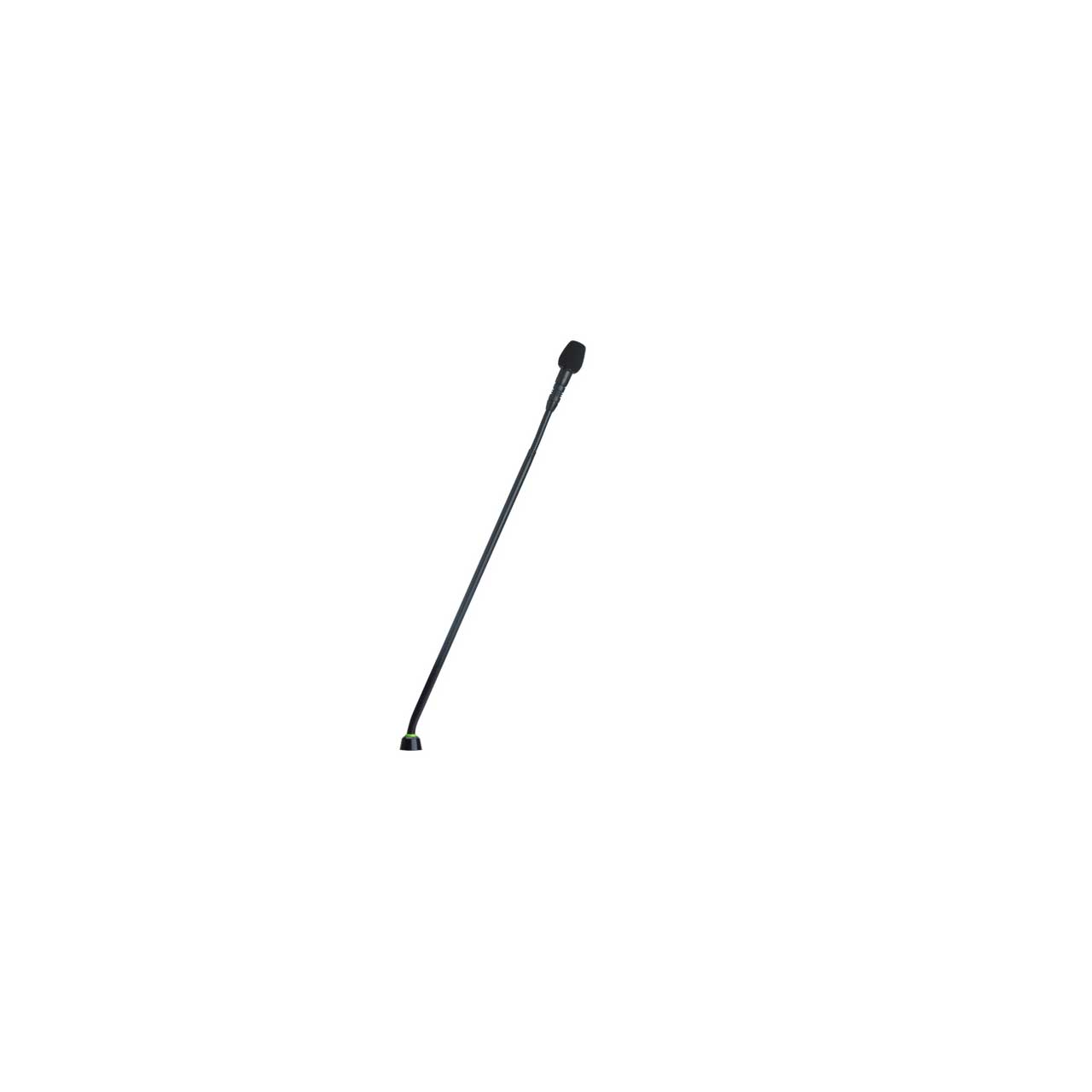

Shure MX415/S 15-Inch SuperCardioid Gooseneck Podium Mic with Preamp
Original price was: $526.00.$375.00Current price is: $375.00.
Shure MX415/S 15-Inch SuperCardioid Gooseneck Podium Mic with Preamp. Gear by The Penn Group.
Out of stock
Description
Flexible in more ways than one, Microflex Modular Gooseneck microphones deliver unsurpassed style and performance for conference rooms and similar applications. Offering desktop or mounted bases, wired or wireless options, and even interchangeable cartridges, it’s easy to get the perfect fit for your conferencing installation. Fully compatible with SLX wireless systems, including the SLX4L wireless receiver with logic output for applications requiring logic functionality.
Specifications:
- Type: Condenser (electret bias)
- Frequency Response: 50.17000 Hz
- Polar Pattern (at 1 kHz): Supercardioid
- Output Impedance: EIA Rated at 150 Ohms (170 Ohms actual)
- Output Configuration: Active Balanced
- Sensitivity (at 1 kHz , open circuit voltage): .34 dBV/Pa (21 mV)
- Maximum SPL (1 kHz at 1% THD, 1 kW load): 120 dB
- Equivalent Output Noise (A-weighted): 27 dB SPL
- Signal-to-Noise Ratio (referenced at 94 dB SPL at 1 kHz): 68 dB
- Dynamic Range (1 k Ohms load at 1 kHz): 93 dB
- Common Mode Rejection (10 Hz to 100 kHz): 45 dB minimum
- Preamplifier Output Clipping Level (1% THD): -8 dBV (0.4 V)
- Polarity: 3-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector.
- 5-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 4 relative to pin 2 of output XLR connector.
- Weight: 0.07 kg (0.154 lbs)
- Logic Connections: LED IN: Active low (.1.0V), TTL compatible. Absolute maximum voltage: -0.7V to 50V.
- LOGIC OUT: Active low (.1.0V), sinks up to 20mA, TTL compatible. Absolute maximum voltage: -0.7V to 50V (up to 50V through 3kŸ).
- Mute Switch Attenuation: -50 dB minimum
- Cable: MX400DP: 6.1 m (20 ft) attached cable with shielded audio pair terminated at a 3-pin male XLR and three unterminated conductors for logic control
- Environmental Conditions:
- Operating Temperature: -18.57 °C (0.135 °F)
- Storage Temperature: -29.74 °C (-20.165 °F)
- Relative Humidity: 0.95%
- Power Requirements: 48.52 Vdc phantom, 8.0 mA
Additional information
| Weight | 1.3 lbs |
|---|
