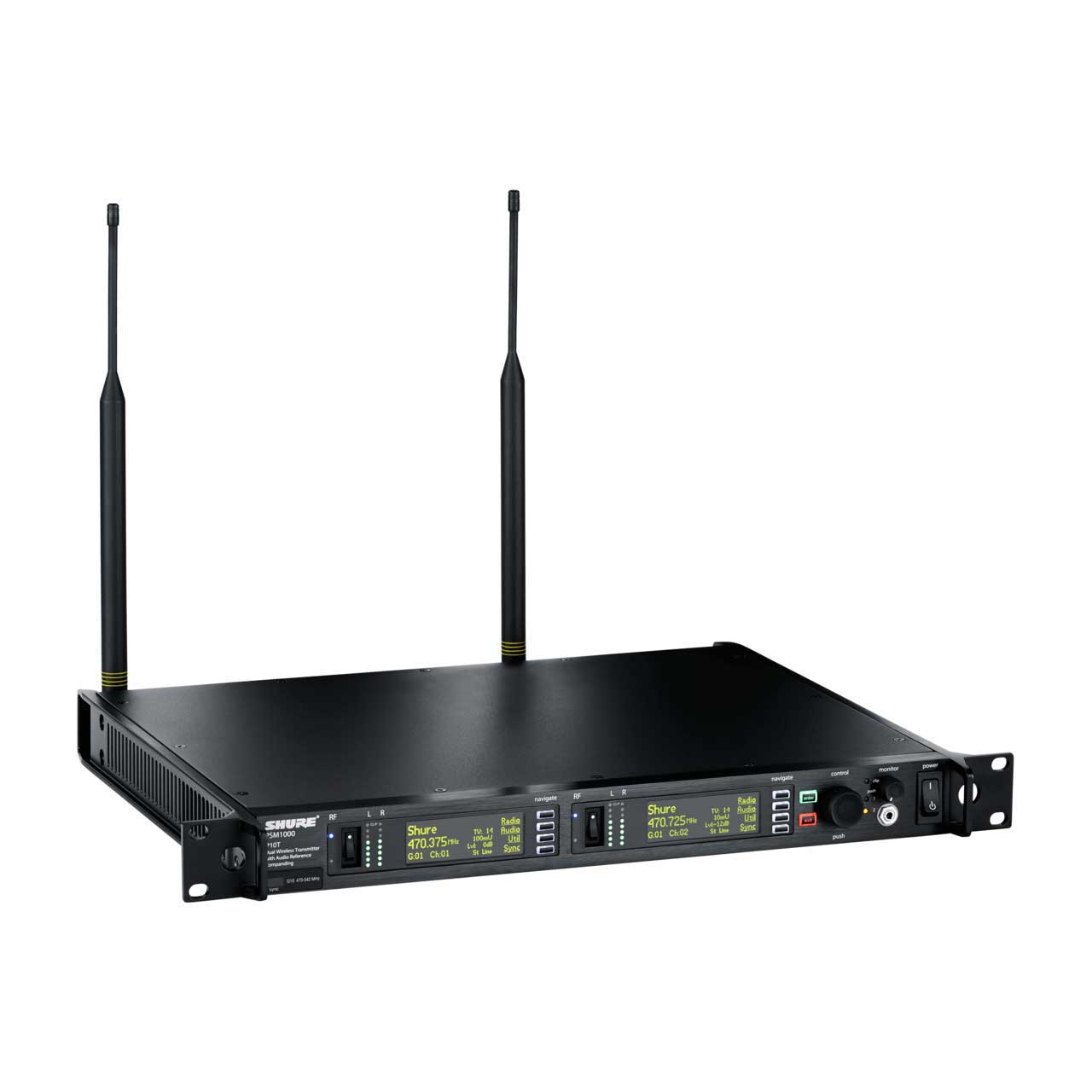

Shure P10T=-J8A PSM1000 Dual Rack Unit Wireless Transmitter – J8A (554 – 616 MHz)
Original price was: $4,483.00.$3,586.00Current price is: $3,586.00.
Shure P10T=-J8A PSM1000 Dual Rack Unit Wireless Transmitter – J8A (554 – 616 MHz). Gear by The Penn Group.
Out of stock
Description
The P10T is a networkable, full-rack, dual channel wireless transmitter used in conjunction with the P10R Wireless Bodypack Receiver as part of the PSM®1000 Personal Monitor System. It offers a 72 MHz wide tuning bandwidth, networked remote control via Wireless Workbench® software, advanced rechargeability options, and PSM®900 backwards compatibility.
Connections include balanced 1/4″ and XLR, loop out, dual Ethernet ports, and headphone monitor out.
Comes with front or back mountable antennas, and power and Ethernet jumper cables.
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation
Features:
- Full rack, dual-channel transmitter in a professional, touring grade chassis
- 72 MHz wide tuning range provides flexibility and performance in crowded, unpredictable RF environments
- Backwards-compatible with PSM®900 receivers
- RF Mute Switch allows system setup without causing RF interference
- Sync RF scan information from a P10R bodypack quickly and easily over IR link
- Switchable 10/50/100 mW output power provides a robust RF link in a variety of performance environments
- Spectrum display provides a detailed frequency plot on the menu screen with selectable zoom
- Front panel audio input gain adjustment and LED level meter with clipping indicator
- Exceptional transmitter linearity vastly reduces frequency intermodulation, allowing more compatible channels per frequency range
- High-contrast LCD with grouped menu items provides an intuitive user interface
- Front or back mountable antennas
- Compatible with PA821B and PA821A antenna combiners
- Loop out connectors for multiple mix setups and easy installation
- Switchable +4dBu and -10 dBV input level
- Balanced, 1/4″ and XLR connectors
- 1/8″ headphone out on the front panel for easy monitoring
Specifications:
- RF Output Power Selectable: 10, 50, 100 mW (regionally dependent)
- RF Output Impedance: 50 Ω (typical)
- Net Weight: 4.7 Kg (10.4 lb)
- Dimensions: 44 X 483 X 343 mm
- Power Requirement: Input: 100-240V AC, 50/60 Hz, 0.5A max (5.5 max outlet loaded), Output: 100-240V AC, 5A max, unswitched
- Connector Type: Combination XLR and 6.35 mm (1/4″) TRS
- Polarity: XLR: Non-inverting (pin 2 positive with respect to pin 3), 6.35 mm (1/4″) TRS: Tip positive with respect to ring
- Configuration: Electronically balanced
- Impedance: 70.2 kΩ (actual)
- Nominal Input Level Switchable: +4 dBu, -10 dBV
- Maximum Input Level: +4 dBu: +29.2 dBu, -10 dBV: +12.2 dBu
- Pin Assignments: XLR: 1=ground, 2=hot, 3=cold, 6.35 mm (1/4″) TRS: Tip=hot, Ring=cold, Sleeve=ground
- Phantom Power Protection: Up to 60 V DC
- Connector Type: 6.35 mm (1/4″) TRS
- Configuration: Electronically balanced
- Impedance: Connected directly to inputs
Additional information
| Weight | 18.0 lbs |
|---|
