Description

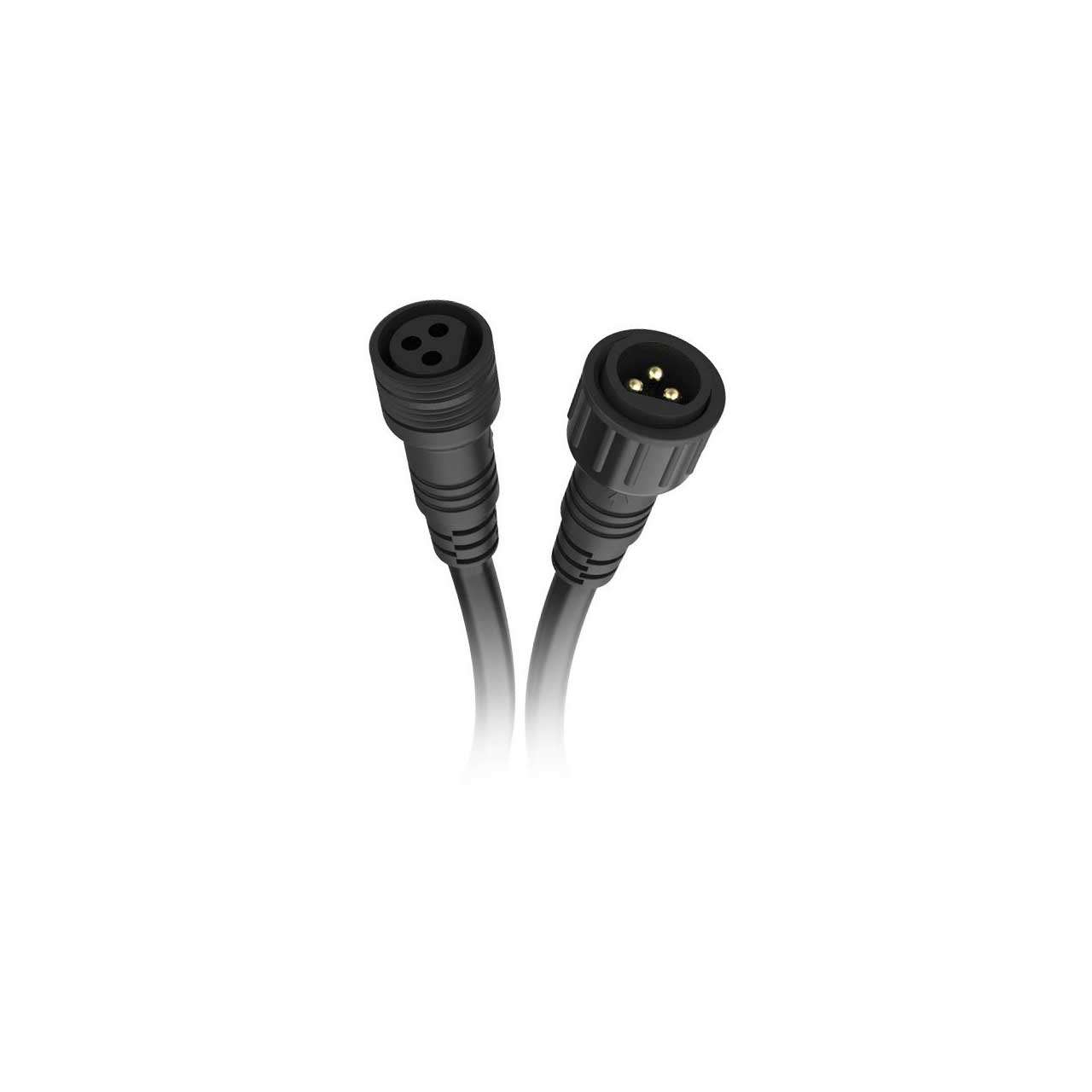

Chauvet IPFLEXEXT is an IP rated power and data extension cable for the Epix Flex Series.
Specifications:
- Available Lengths
5 feet (1.5m)
15 feet (4.57m)
25 feet (7.62m)
50 feet (15.24m) Note: dimensions are roundedCable Interal Conductors
- Cable Size: (3) (SJTW) 16AWG stranded
- DC+ Wire Color: Black
- DC- Wire Color: White
- Data Wire Color: Green
- Conductor Quanity: 3 twisted
- Internal Conudctor Insulation Thickness: 0.69mm
- Wire Impedance: 0.762 Mฮฉ/Km
Cable Outer Insulation
- Outer Jacket Thickness: 0.61mm
- Jacket Materal: PVC
- Jacket Type: Flexible Rubber (Black)
- Shielded: No
- Outer JAcket Diameter: 8.15mm to 8.45mm
Connections
- Connector Type: 3-pin IP Flex
- Connector Quantity: 2
Ratings
- IP67
- UL-MET
Thermal
- Minimum External Temperature: -40ยฐF (-40ยฐC)
- Maximum External Temperature: 221ยฐF (105ยฐC)
Item Includes:
- Cable packed in bag with header card
