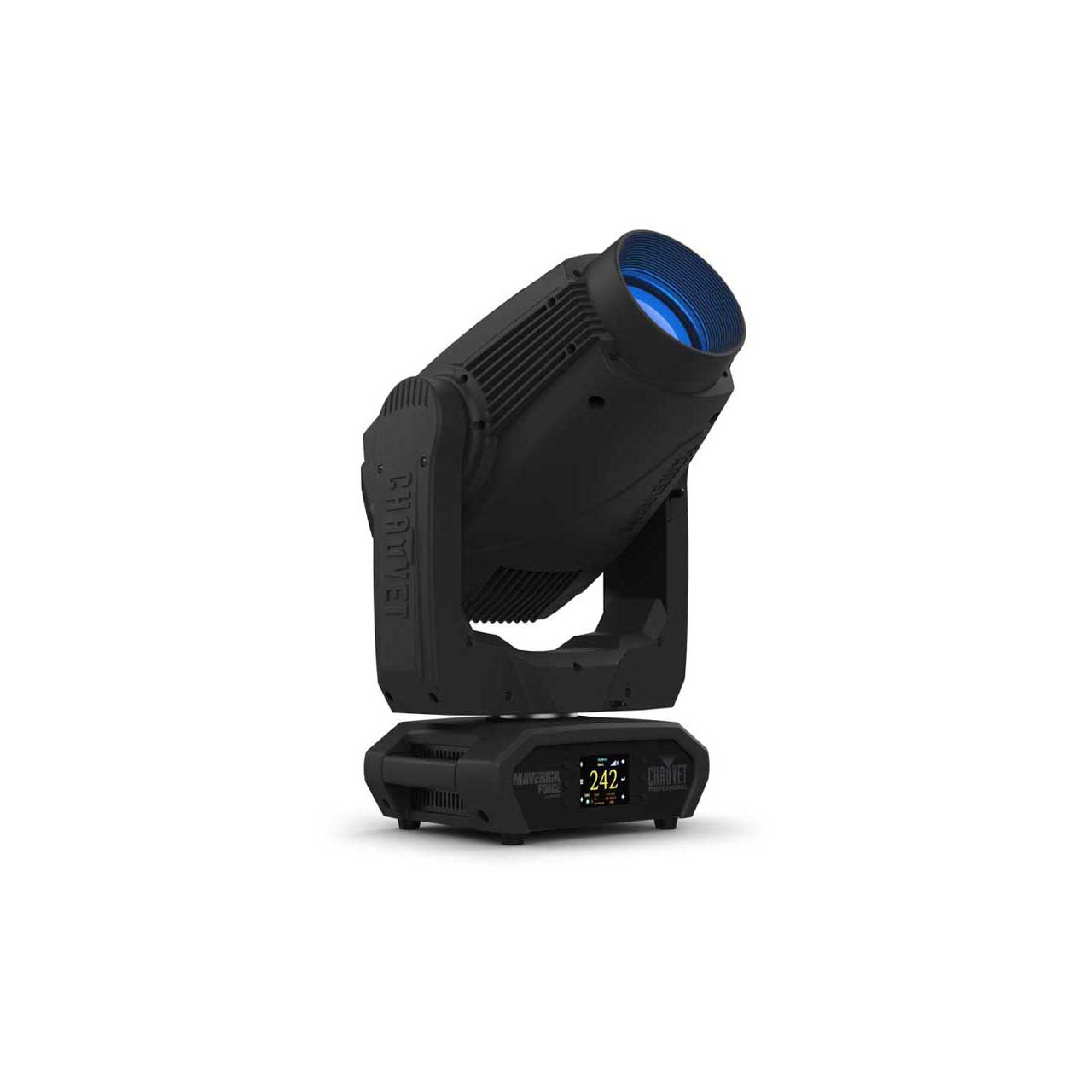

Chauvet MAVERICK FORCE 1 SPOT Compact Lightweight 470W LED Yoke Spot Fixture

Maverick Force 1 Spot is a lightweight moving head with a big presence. The tour-ready unit features an output of 20,000 lumens and an artillery of speedy effects in a deceptively compact frame, just under 50lbs. Maverick Force 1 Spot features CMY + CTO color-mixing, a color wheel with a CTB and CRI option, and an extensive zoom range of 7 to over 50 degrees that maintains a flat field of focus even when fully wide. Motorized iris, focus, zoom, and frost capabilities, alongside a 5-facet rotating prism give an abundance of tools for beam shaping as well. Custom glass gobos created in collaboration with leading designers, and a continuous animation wheel can all be stacked on top of each other. Control as you see fit with DMX, sACN, Art-Net or W-DMX.

Features:

• Fully featured, compact and lightweight 470 W LED yoke spot fixture including CMY + CTO color mixing, a color wheel, zoom optics, and two gobo wheels, one rotating, and one static, and an animation wheel
• 16-bit dimming of master dimmer for smooth control of fades
• Variable CMY + CTO color mixing system to create a wide pallet of colors
• CRI and CTB filters on color wheel for added flexibility
• DMX, WDMX, sACN, and Art-Net for full flexibility of control options
• RDM enabled for remote addressing and trouble shooting
• 6.3° to 54.4° zoom range for variable beam sizes
• Iris, 5-facet prism, and frost for beam control
• True 1 compatible power input
• Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup
• USB slot for software uploads
• Battery backup display with auto-rotate depending on fixture orientation

Specifications:

• Optical
• Light Source: 1 LED (CW) 470 W, (4 A), 7500K, 50,000 hours life expectancy
• Color Temperature (at full): 7099 K
• CRI: 68.8
• CRI with CRI Filter: 89.4
• Front Lens Dia: 127 mm
• Beam Angle: 6.3° to 45.7°
• Field Angle: 7.3° to 53°
• Cutoff Angle: 7.6° to 54.4°
• Zoom Range: 6.3° to 54.4°
• Lumens – Source: 35,000
• Lumens – Output: 21,172
• Illuminance (6.3°): 43,485 lux @ 5 m
• Illuminance (54.4°): 1,793 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

  Dynamic Effects

• Pan and Tilt: 540°/270°
• Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
• Colors: 7 (including CRI and CTB filters) + white, split colors, continuous scroll at variable speeds
• Colors: CMY+ CTO flags
• Gobos (1): 7 + open (7 glass), rotating, interchangeable, continuous scroll at variable speeds
• Gobos (2): 9 + open (9 glass), static, continuous scroll at variable speeds
• Gobo Size (1): Gobo Wheel 1 (rotating): 25.5 mm (outside), 20 mm (image), 1.1 mm (max. thickness)
• Animation wheel: static, motorized, continuous scroll at variable speeds
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Focus: Motorized
• Frost: Motorized
• Iris: Motorized
• Prism: 5 Facets, motorized, rotating
• Strobe Rate: 0 to 20 Hz
• Move-in-Black: Yes
• Dim Curves: 4

  Construction/Physical

• Dimensions: 15.5 x 9.8 x 25.0 in (394 x 250 x 636 mm)
• Weight: 48 lb (21.8 kg)
• Exterior Color: Black
• Housing Material: High-impact flame-retardant polymer

  Control

• Control Protocol: Art-Net, sACN, DMX, W-DMX
• DMX Channels: 25 or 32
• Art-Net Channels: 25 or 32
• Modes/Personalities: 2 personalities (25, 32)

  Connections

• Power Connection: Edison plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Data Connectors: 3-pin and 5-pin XLR, Amphenol XLR Net RJ45 Connectors in/out
• Cable Length (power): 5 ft (1.5 m)

  Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 670 W, 6.70 A @ 100 V, 60 Hz
• Power and Current: 660 W, 5.45 A @ 120 V, 60 Hz
• Power and Current: 637 W, 3.10 A @ 208 V, 60 Hz
• Power and Current: 632 W, 2.79 A @ 230 V, 50 Hz
• Power and Current: 630 W, 2.70 A @ 240 V, 50 Hz
• Power and Current (resting): 80 W, 0.801 A @ 100 V, 60 Hz
• Power and Current (resting): 80 W, 0.665 A @ 120 V, 60 Hz
• Power and Current (resting): 84 W, 0.397 A @ 208 V, 60 Hz
• Power and Current (resting): 84 W, 0.356 A @ 230 V, 50 Hz
• Power and Current (resting): 89 W, 0.361 A @ 240 V, 50 Hz
• Power Linking 13.6A: 2 @100v, 2 @120v, 4@208V, 4@230v, 5@240v

Item Includes:

• 1x Maverick Force 1 Spot
• 1x Seetronic Powerkon IP65 power cord
• 2x Omega brackets with mounting hardware
• 1x Quick Reference Guide
